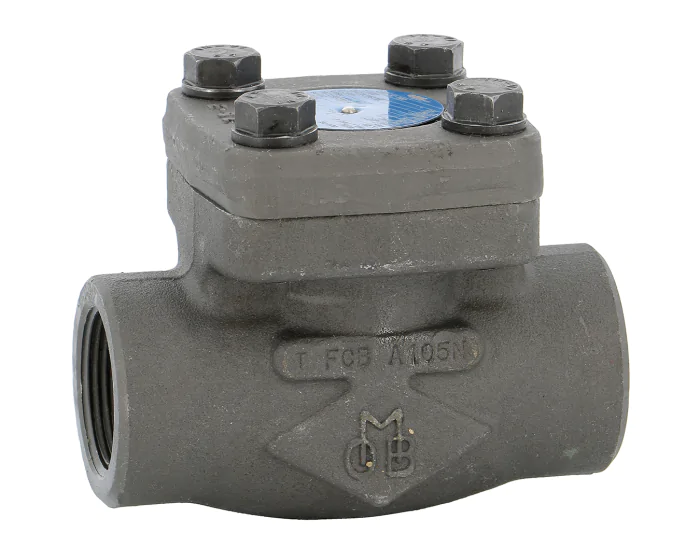

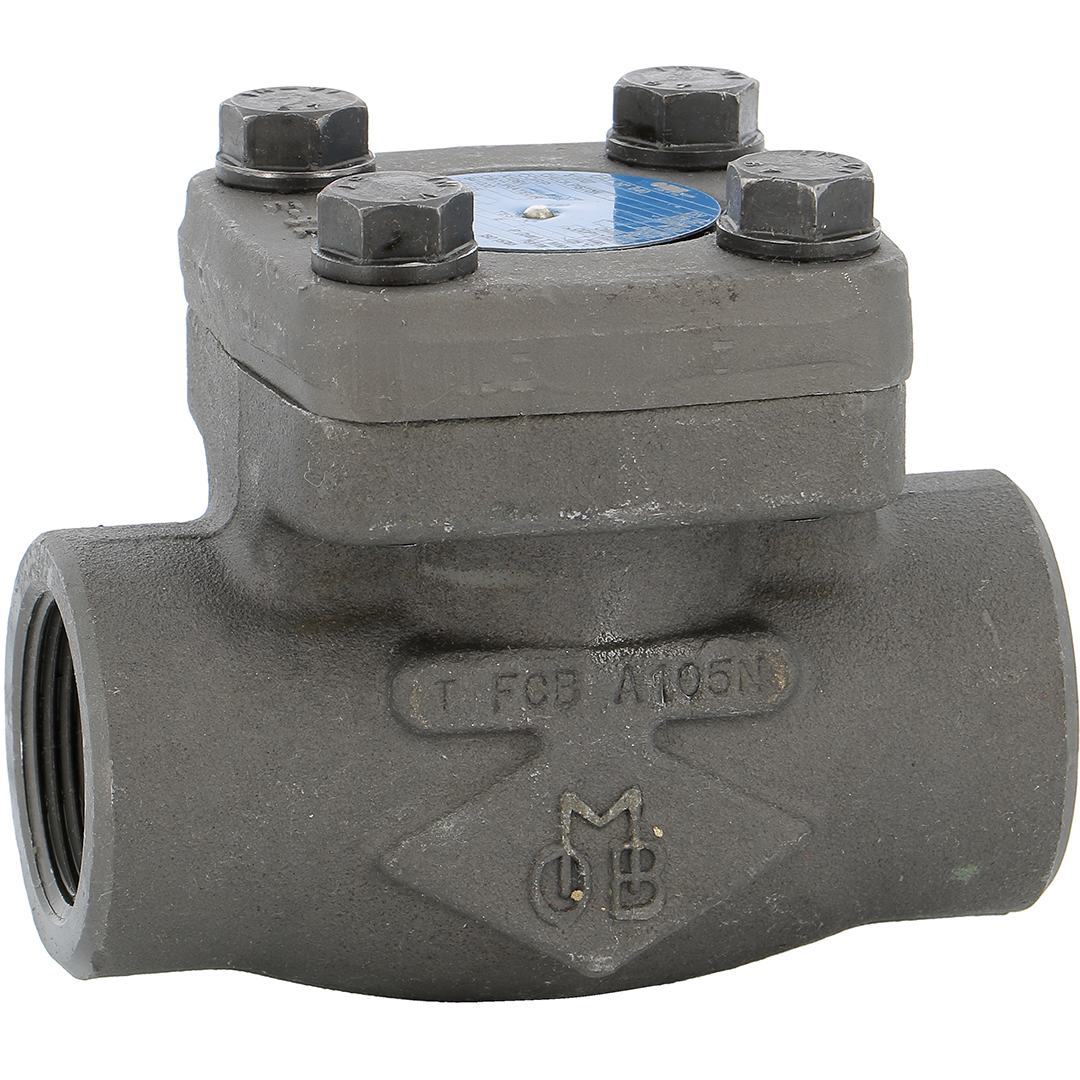

The check valve series 314, piston type with BSP threaded spring, in forged steel TRIM 8, class 800, 1/2 stellite, phosphate coated surface, for oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 8 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 0.9 |
| Body material | Carbon steel ASTM A105 N |
| Bore | Standard |
| PS (bar) | 136 |
| Connections | BSP FF |
| Seats | Stainless steel ASTM A276 Tp 410 stellite |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Plug material | Stainless steel ASTM A276 AISI 410 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel ASTM A105 N Standard 3/8'' | 314003 | S1007335 |
€36.56
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 1/2'' | 314004 | S1007336 |
€40.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 3/4'' | 314005 | S1007337 |
€40.51
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 1'' | 314006 | S1007338 |
€52.70
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 1''1/4 | 314007 | S1007339 |
€116.59
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 1''1/2 | 314008 | S1007340 |
€116.59
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 2'' | 314009 | S1007341 |
€130.36
(excl. btw)
|
add to cart |
